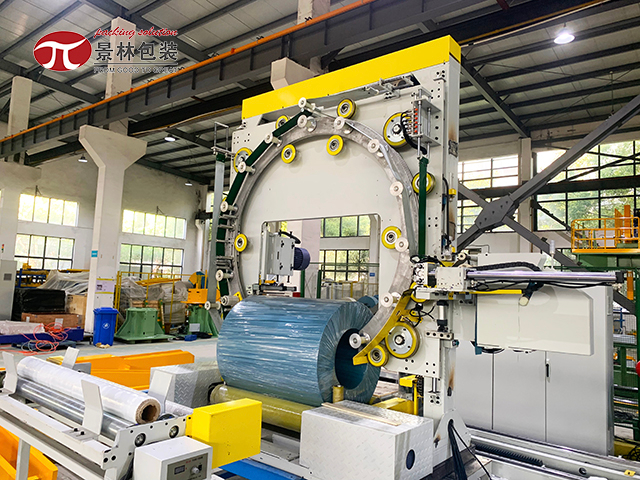

Steel wire compression and wrapping machine

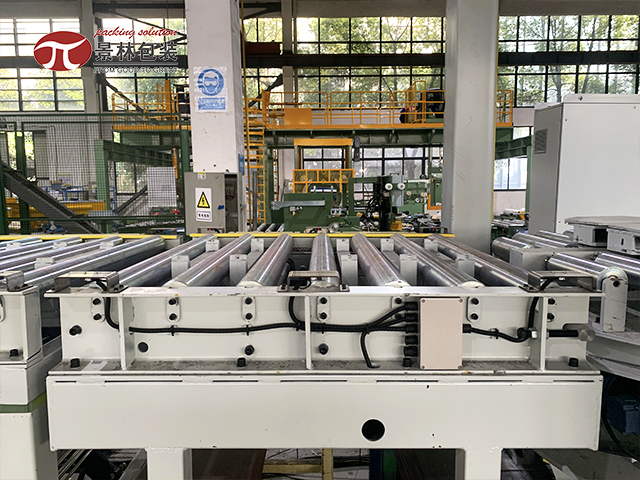

This line is mainly composed of in-feeding conveyor line, steel wire compressor system, transition conveyor line, empty frame recovery system, wire frame temporary storage line, discharge system, wrapping packaging machine.
  • GD


  • 8422400090


This line is used for the automatic packaging process of steel wire materials, realizing the automatic packaging  process of steel wire, changing the previous manual discharge, wrapping, wire frame operation, increasing the  personnel safety, reducing the damage caused by manual packaging to products, and improving the quality of product packaging.

Technical data:

Object: steel wire coils

Coil ID: ≧420mm(must be not less than 420mm)

Coil OD: 800mm

Coil width: ≦1000mm

Coil weight: max 4000kg

Roller speed: Approx. 3-5m/min

Rotating speed: Approx. 20-30r/min

Overlapping rate:30-50%

Power output: About 8.0kw

Power voltage: AC/380 V/60Hz

Air Supply: 6-8 kgf/cm2

Wrapping effect: Product surface is smooth and even

Packing Material: Stretch film(woven knit belt): ID:50mm; OD: 100mm; Width:100mm
